Motor, transformer and coil tests are done on this unit!!
All in one tester for coil winding products!!

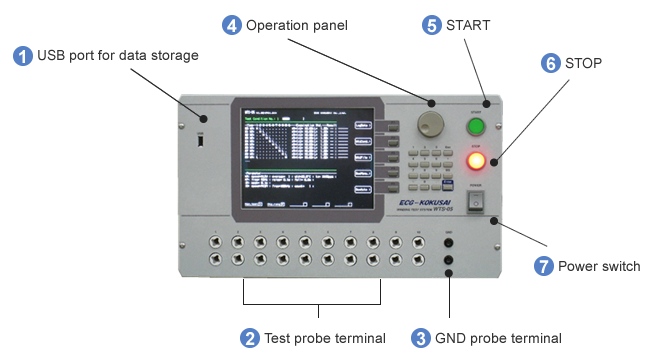

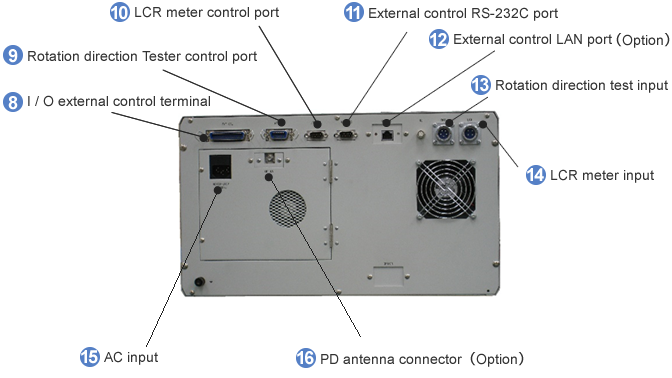

Product Description
Features
- ４tests can be carried out with one unit
1. Impulse test
2. DC resistance test
3. AC voltage test
4. Insulation resistance test - Built-in 10 circuits switcher free selection
- Additional options
1. Impulse PD (partial discharge) test*1
2. Inductance test*2
3. Rotation direction*2
*1: PD sensor added
*2: Connected with specified measuring instrument
Specifications
| Impulse test | Applied voltage | 0.5kV～5.0kV 0.1kV step |
| Judgment item | Area, Diff-Area、Flutter or Laplacian | |
| Test inductance range | 10µH less | |
| DC resistance | Measurement terminal | 4 terminal measurement method |
| Measurement range | 1.000mΩ～350.00Ω | |
| AC Hi-Pot | Test voltage | AC0.2kV～5.0kV （50Hz/60Hz） |
| Output capacity | 100VA（5.0kV、20mA） | |
| Measurement range | Upper limit 0.01〜20.00mA | |
| Lower limit 0.01〜19.99 mA and OFF | ||
| Insulation resistance | Test voltage | DC25V/50V/100V/250V/500V/1000V |
| Measurement range | 0.001～9990MΩ | |
| Test pattern | Number of switching | 10 circuits Hi/Lo can be arbitrarily set |
| Test step | Maximum 100 steps (total 200 steps) | |
| General | External communication | RS-232C、I/O、USB（Data storage only） |
| Accessories | AC cable 1, Test cable（1.5m）10 | |
| Dimension/Weight | W430×H245×D485 weight 27.5kg | |
| Power supply voltage | 100V～240V |
